Dip Davis Pop Rivet STC for the
Cessna 120/140/170
Less Expensive than clips!
Use with elongated clip holes!
Easy to Use!
Pop Rivet Kit Information

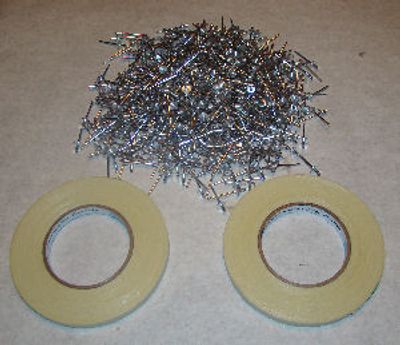

The W. D. Davis CWR-1 rivet kit replaces the S-43 fabric retaining clips in the wing rib flange with a large bearing area head "Pop" rivet. The kit consists of 1000 rivets and enough self-adhesive reinforcing tape to do both wings on a Cessna 120/140 or 170.
The wing clips worked well for the first and probably second time the wings were covered, but over the years the holes may have gotten enlarged to the point that the clips no longer fit snugly and can work their way right through the surface tapes in some cases. If you need to replace all of the clips you will be faced with an expense of over four dollars for each clip, even with a 40% discount.
Our STC is available for use with either the Poly Fiber covering system, the Super Flight covering system, and the Stewart covering system. When ordering your covering materials, do NOT order the rib lacing tapes as these will be provided with the Pop Rivet Kit.
Super Flight Covering System: We charge US $325, postpaid, for the entire kit for the Super Flight System, including all the required paperwork.
Poly Fiber Covering System: We charge US $475, postpaid, for the entire kit for the Poly Fiber System, including all the required paperwork.
Stewart Covering System: We charge US $325, postpaid, for the entire kit for the Super Flight System, including all the required paperwork.
Don't be intimidated by the rivet removal procedure in the installation instructions. These rivets have aluminum mandrels and are easily drilled out without driving the mandrel out first. The aluminum mandrel also eliminates the possibility of dissimilar metal corrosion which is present in steel mandrels.
The Dip Davis Cowl Pop Rivet STC gives you the authority to install the Dip Davis Pop Rivet wing kit on one specific Cessna 120, 140, or 170 wings. This is a one time use STC, is N number specific and is NOT transferable.
The STC includes 1000 rivets, enough self-adhesive reinforcing tape to do both wings along with all the required FAA paperwork and installation instructions for the install.
Super Flight: The cost is US$325 for the Super Flight kit and is postpaid.
Poly Fiber: The cost is US$475 for the Poly Fiber kit and is postpaid.
Stewart: The cost is US$325 for the Super Flight kit and is postpaid.
PAYAMENT: After you submit the order, we will send out your order. We will include an invoice with payment instructons. You can either send a check for the STC or pay using paypal, or call us back with a Credit Card (plus 3.75% fee). If you International or are from Canada, we request payment be either PayPal or International Money Orderor Credit Card..
